How to Use Yanhua Mini ACDP Clone BMW ECU DME

Yanhua Mini ACDP BMW ECU Clone update:
  1. Read and write Dflash / Pflash for BMW DME (N13,N20,N63,S63,N55,B38 etc), then perform DME clone.
  2. Read and write the data without removing DME shell and punching.
  3. More ECU types will be added one by one.
Yanhua Mini ACDP Programmer Tech Support

Need:
Yanhua Mini ACDP Master (149usd)
A51C Software License with Adapters (219usd)

Connection method:
Step 1. Please prepare ACDP, OBP+ICP adapter, interface board and DME.
yanhua-mini-acdp-bmw-ecu-clone-01


Step 2. Connect the interface board correctly to the DME interface as shown.
yanhua-mini-acdp-bmw-ecu-clone-02

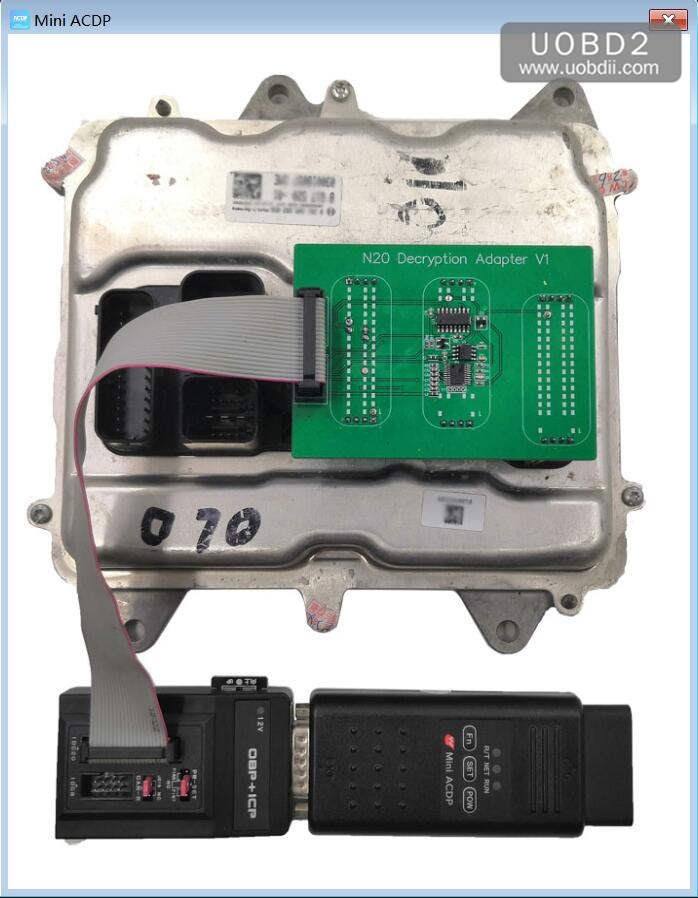

Step 3. Connect ACDP, OBP+ICP adapter, interface board and DME.
yanhua-mini-acdp-bmw-ecu-clone-03

Open Mini ACDP APP.
Choose “BMW”.
yanhua-mini-acdp-bmw-ecu-clone-04

Then ECU clone.
yanhua-mini-acdp-bmw-ecu-clone-05

Then DME type, any of N13 N20 N63 S63 N55 B38
yanhua-mini-acdp-bmw-ecu-clone-06

Function Menu:
Identify
Read /write DFLASH
Read/write PFLASH
yanhua-mini-acdp-bmw-ecu-clone-07
For the following operation, please follow the on-screen instruction.
When Yanhua ACDP engineer have time, we will make video and share with you.
